IntroductionEdit

This article describes one easy way to make the guards for bow irons. An alternative way is described this article.

Many thanks to Ville Huhta from Rautaportti Ky for providing the necessary tools, designing and making these parts with me and for taking the photographs.

Process step-by-stepEdit

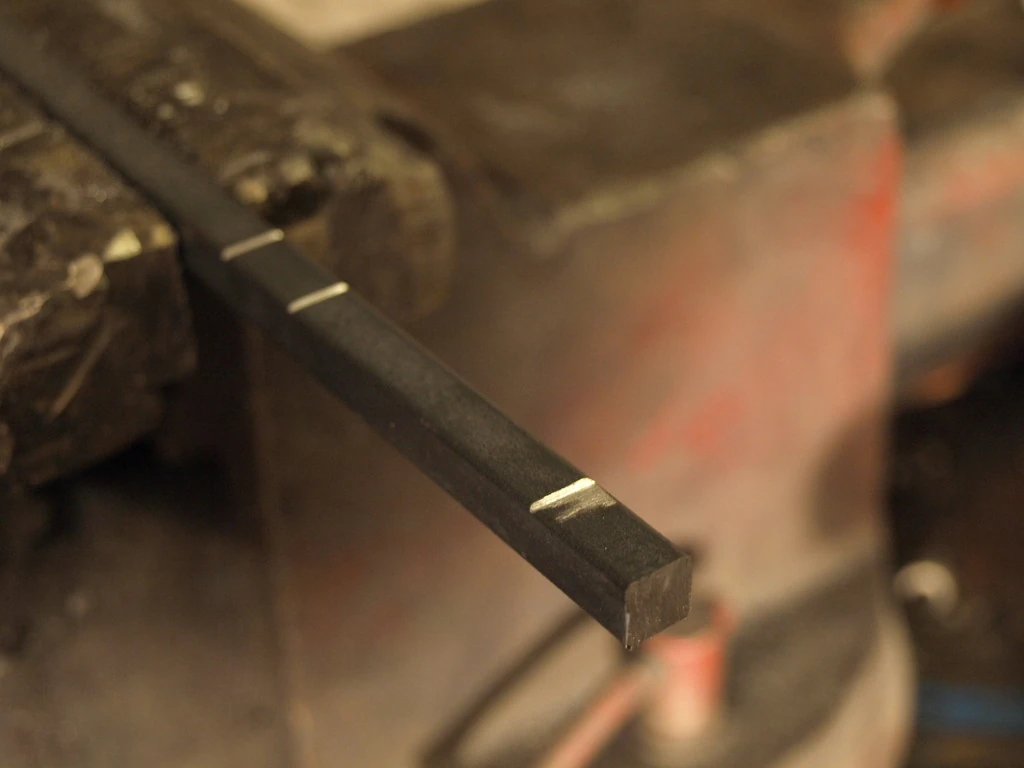

Start by marking the places where to grind:

Making the guards 2-1024x768-02

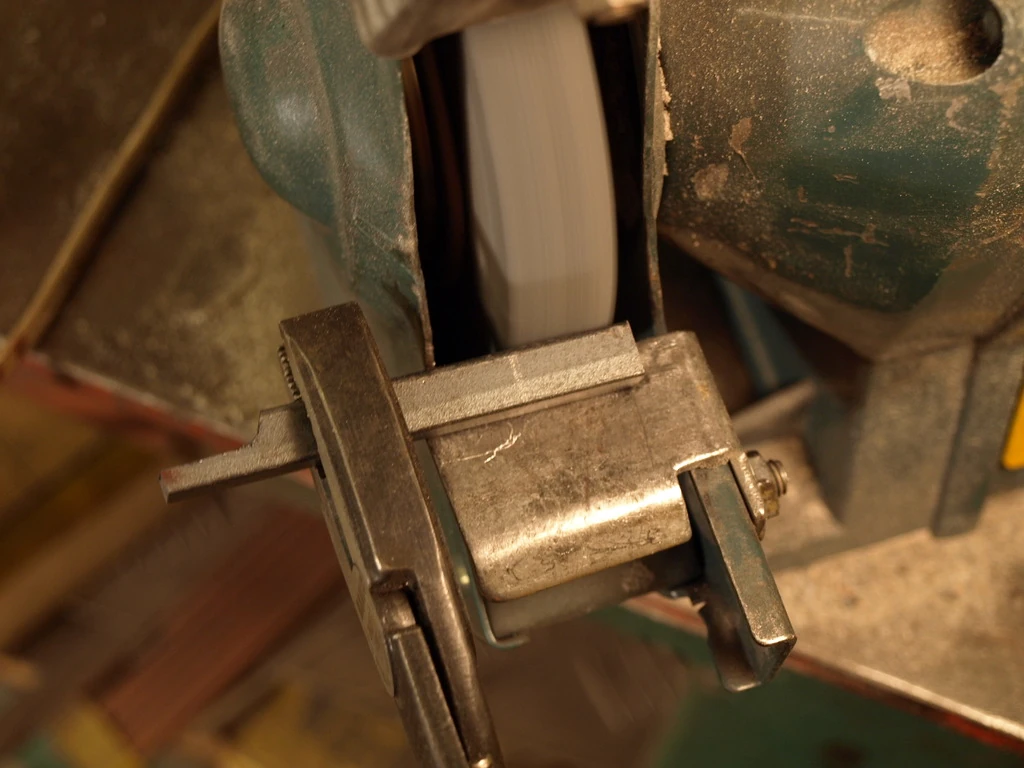

Next grind away half of the thickness of the rod at one end, cut the guard to correct length and grind the other end:

Making the guards 2-1024x768-01

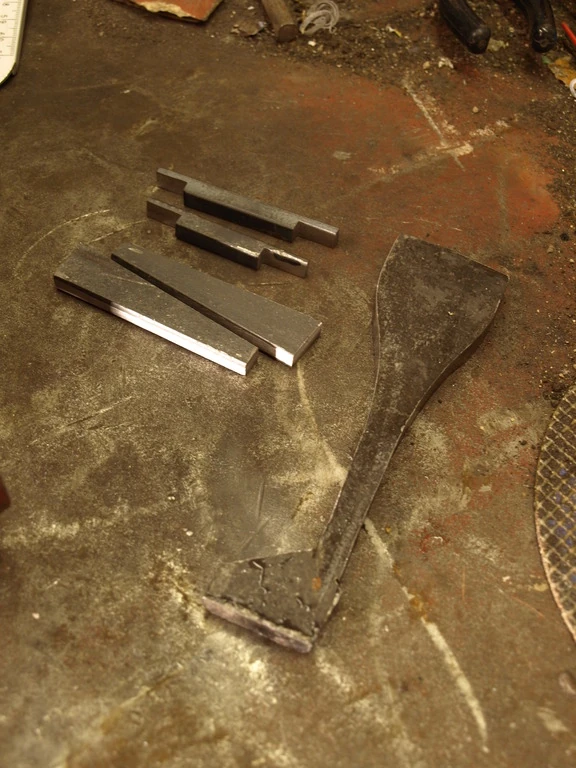

In the picture below (at top left) you'll see what the guards should look like at this point:

Making the guards 2-1024x768-03

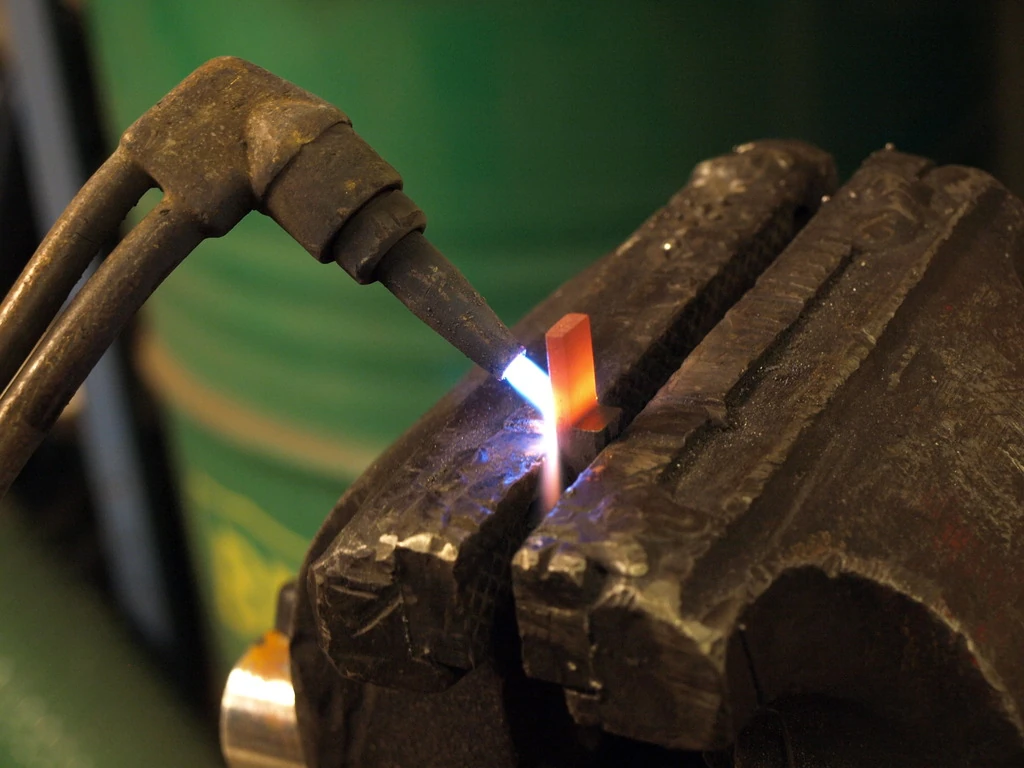

Next put the guard into a vise and heat the thin end with a blow torch (or in a forge):

Making the guards 2-1024x768-04

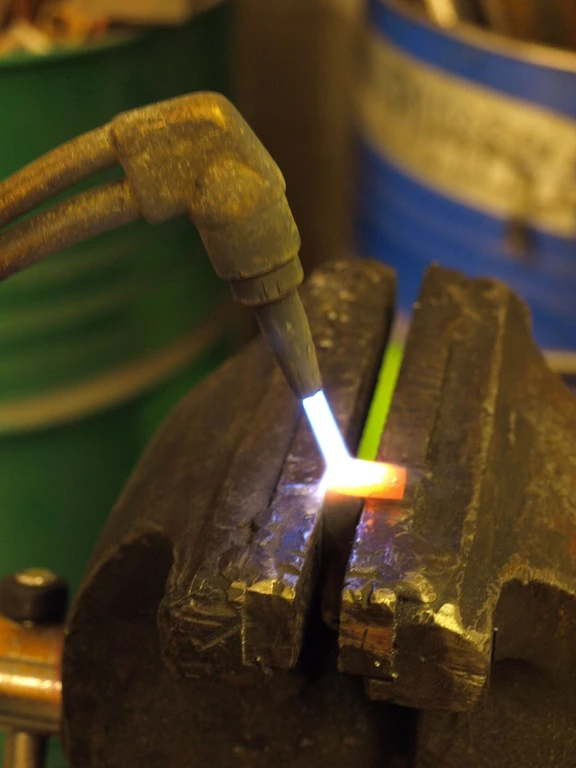

Once sufficiently hot, hammer the thin end into a 90 degree angle over itself as shown below:

Making the guards 2-1024x768-05

The resulting guards should look like this (above and below the wedges):

Making the guards 2-1024x768-06

Not exactly pretty, but functional and relatively quick to make.
