Blunt boltheads from steel pipeEdit

Blunt, metal boltheads are great when shooting at hard objects which might ruin a sharp point. Also, sharp points tend to penetrate much more, which is a disadvantage on many occasions:

  • Field shooting: a sharp-headed bolt that misses its mark almost certainly drives itself deep into the ground and gets lost. Blunt points don't penetrate as well and thus don't get lost as often.
  • Shooting at ad-hoc targets: If you like to shoot at things such as planks, cans and such, blunt are a much better choice than sharp bolts because they don't penetrate as well. Shooting at planks with sharp, armour-piercing boltheads is asking for trouble, because the bolts tend to get stuck and often break when being removed. This problem only gets worse as crossbow's power increases.

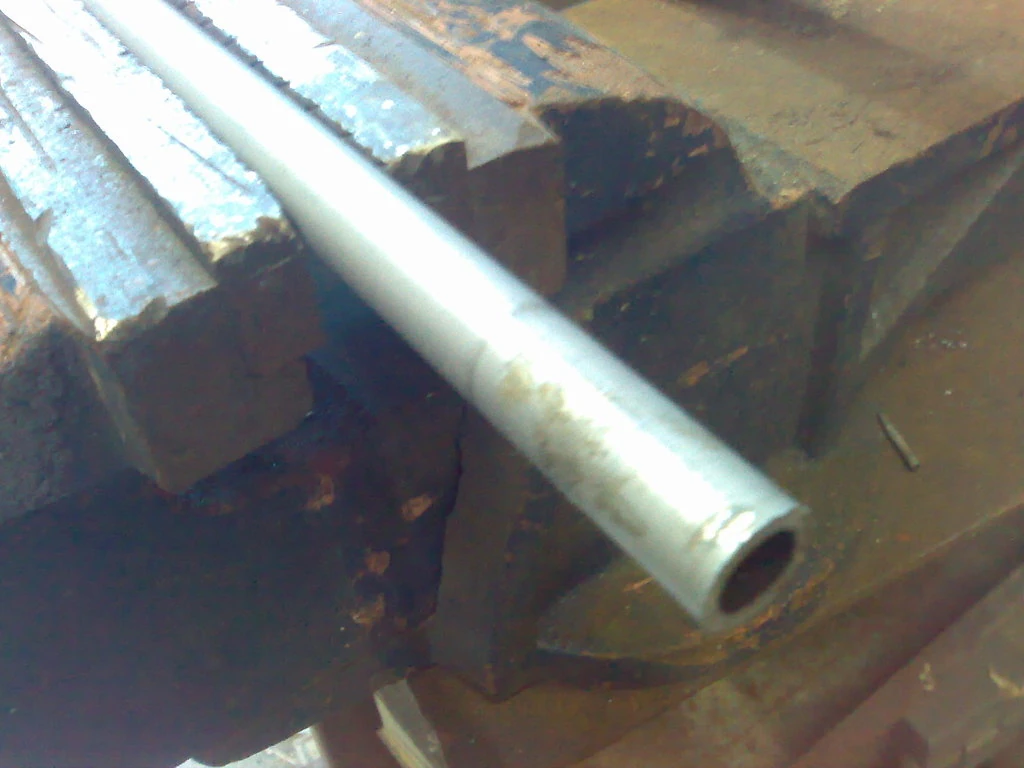

There are many other as good ways to make a blunt boltheads, but this one works pretty well. First, find a length of steel pipe that fits tightly to the bolt shaft's forward end. Cut a few pieces of the pipe, test them with your bolts and check which length gives the proper weight and balance point. Adjust the length of your shafts, if necessary. When you've found the correct pipe length, mark the cuts on the pipe with a pencil, as in below picture:

Blunt boltheads from steel pipe-01

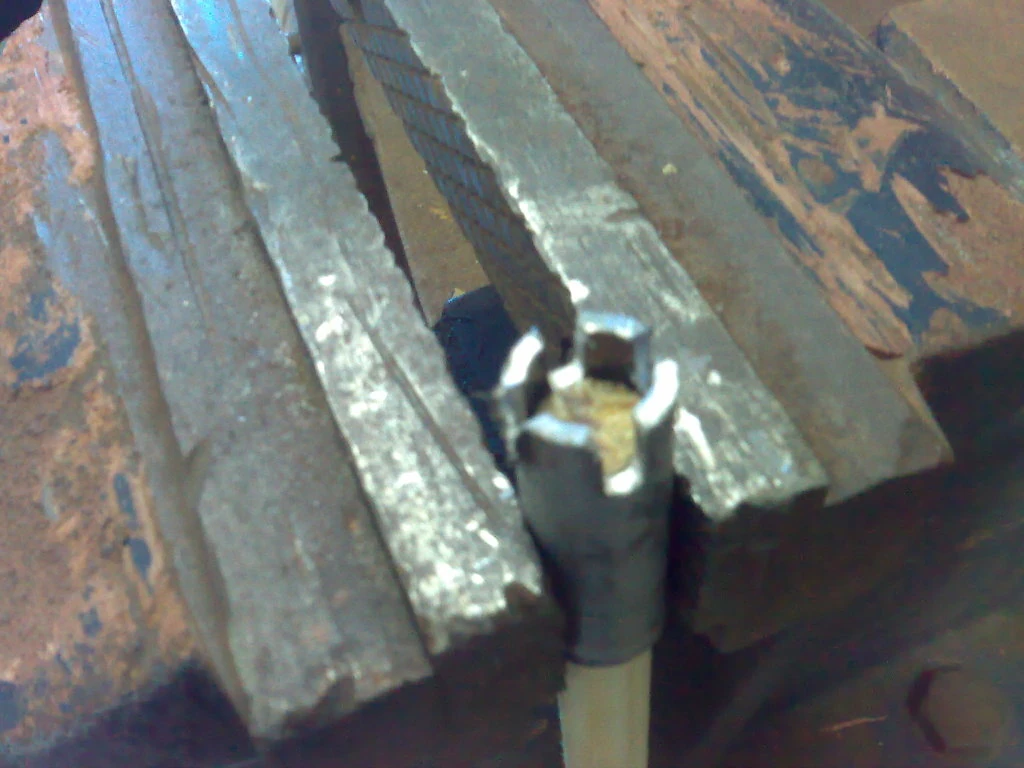

Next we need to cut two short perpendicular slots going through pipe's (imaginary) center. Make sure the slots go directly down the pipe. Use a sharp file to mark where to cut the slots and do the cutting with an angle grinder or a hacksaw. You'll find the correct slot length with testing.

Blunt boltheads from steel pipe-02

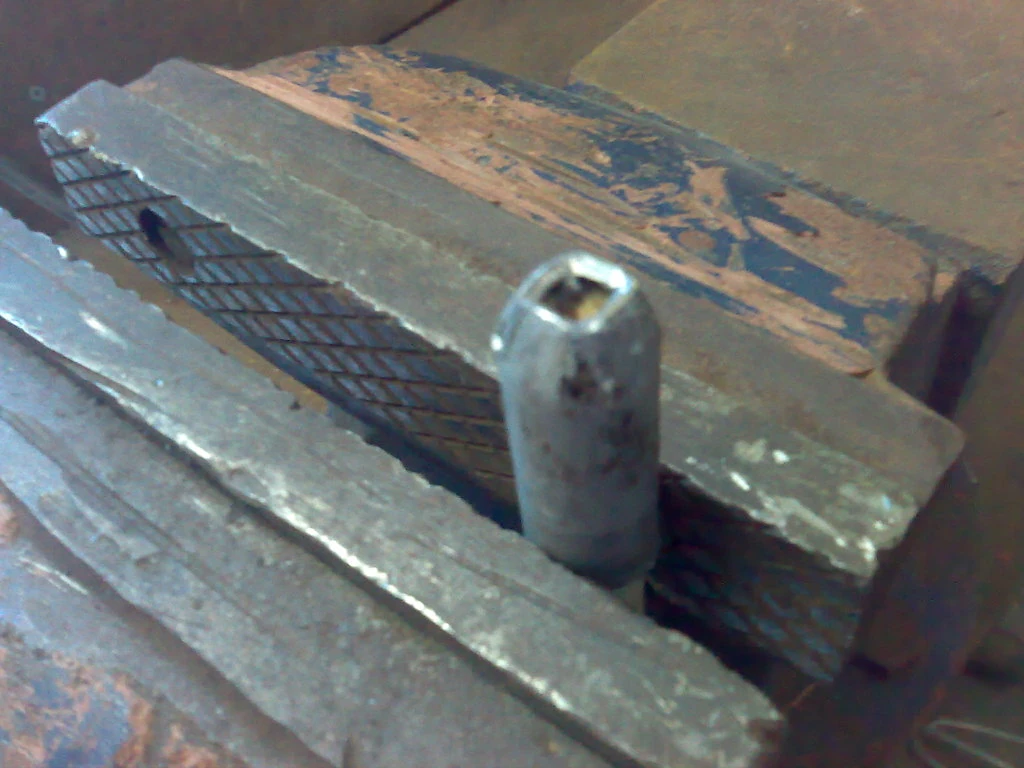

Once the slots have been cut, hammer the edges of the pipe so that they are set firmly against each other. Next place the bolthead upside down against an anvil and insert the shaft. Hammer the shaft's rear end until it's tightly in place, as in below picture.

Blunt boltheads from steel pipe-03

This kind of bolt works well even when shooting at relatively hard targets such as planks. As the shaft supports the pipe's inward canted edges during impact, you should preferably use a hardwood for the shaft. If you shoot at very hard targets (e.g. steel plates) you probably need to use a solid steel bolthead with a proper socket.
